Adjustable Heavy-Duty Broken Bolt & Pipe Extractor Tool
Heavy-Duty Screw & Pipe Extractor – Heat-Treated Alloy Steel Tool
Secure Grip on Stuck or Snapped Fittings
The precision-ground spline jaws bite into rusted threads or broken nipples, allowing you to extract them quickly—no drilling or tapping required.

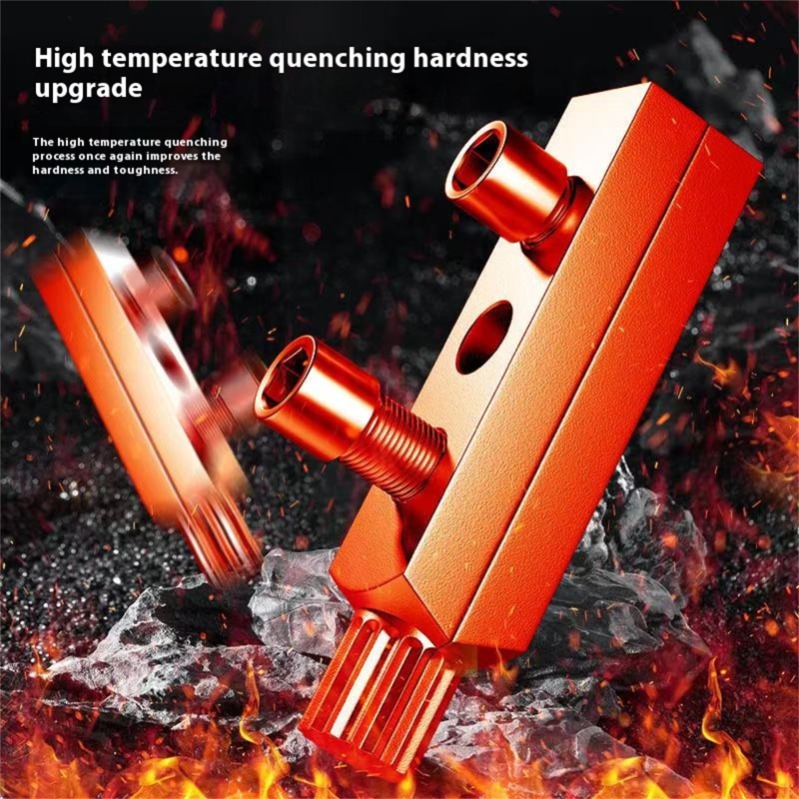

Quench-Hardened Alloy Construction
Full-body heat treatment enhances torsional strength and wear resistance, making it tough enough for frequent use in demanding workshop settings.

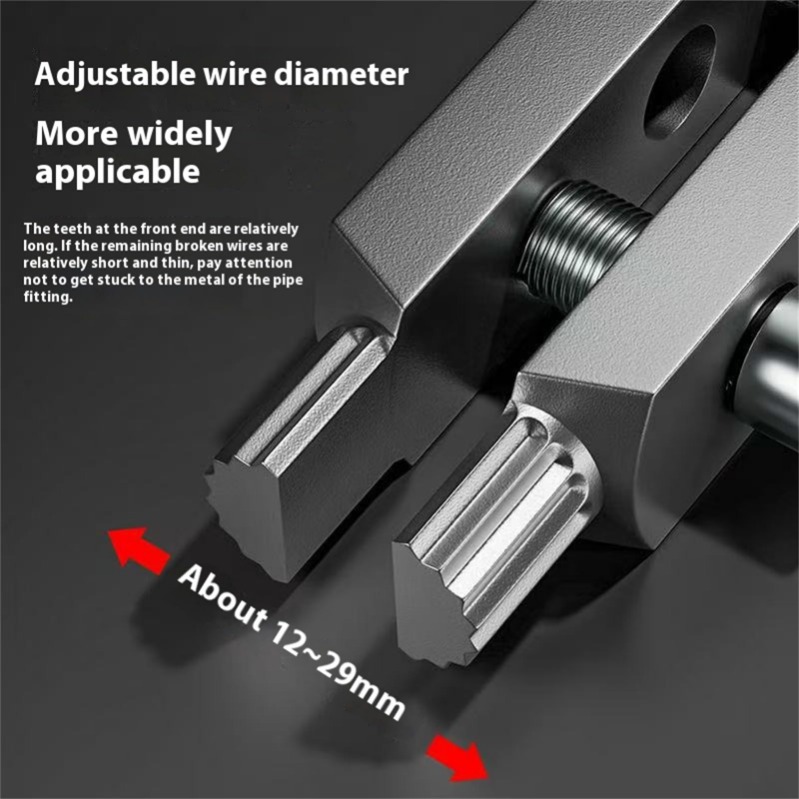

Adjustable Jaw Range: 12–29 mm
Dual screw controls allow precision clamping for a wide range of fittings—from ½ inch shower stems to ¾ inch pipe nipples—without slipping.

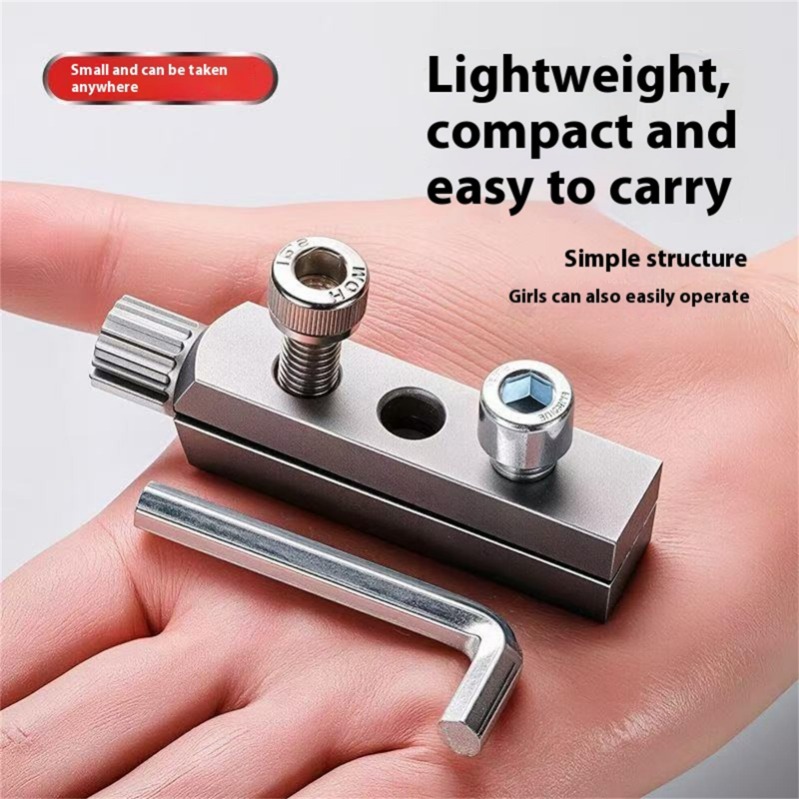

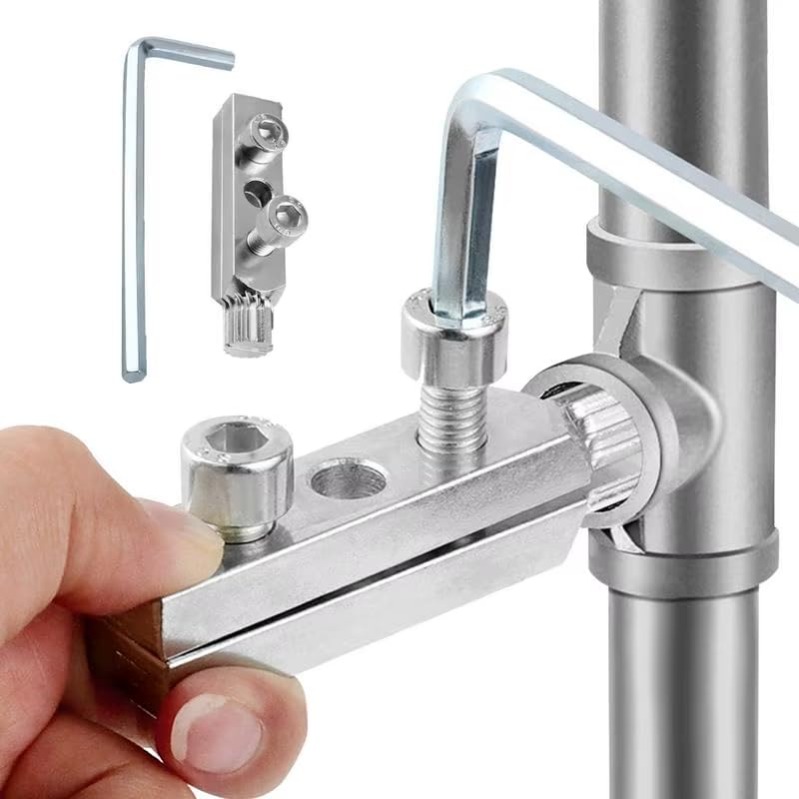

Compact Body with Hex Drive Option
Operate manually using the 6 mm L-key or attach a spanner to the hex base for extra torque—ideal for tight or awkward access points.

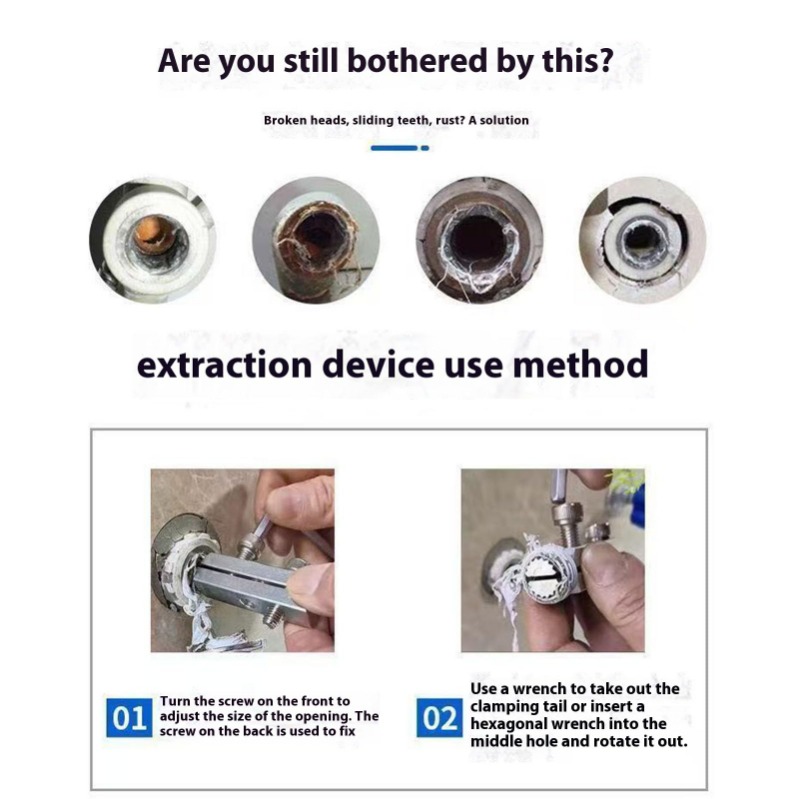

Easy 3-Step Extraction
Set the jaw width, lock in place, and rotate—the self-gripping splines do the rest, biting into the stub and pulling it free with consistent torque.
Specifications
| Material | Alloy steel, full-body quench hardened |
| Total Length | 75 mm / 2.95 in |
| Jaw Range | Ø 12–29 mm (½–1⅛ in) |
| Block Width × Thickness | 16 × 13 mm |
| Hex Key Length | 120 mm / 4.72 in (6 mm AF) |
| Finish | Anti-rust satin chrome |
| Suitable Media | Steel, brass & PVC pipe threads, M8–M18 bolts |
FAQ
Q 1 | Will it damage surrounding threads?
No—the jaws lock onto the broken stud itself, protecting the internal female threads for future reuse.
Q 2 | What tools can I use to drive it?
Use the included L-wrench, or a 14 mm spanner or adjustable wrench to rotate the hex base.
Q 3 | Can it be used for stripped bolts?
Yes—clamp it onto any damaged bolt head (≥ 8 mm wide) and twist it out without extra tools.
Q 4 | How to deal with a stuck or corroded stub?
Apply penetrating oil for 10 minutes, add mild heat if safe, then tighten jaws and turn steadily—no striking required.
